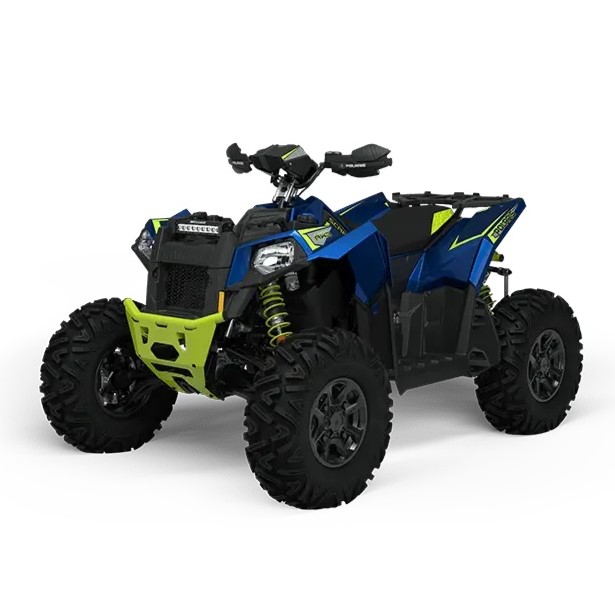

Scrambler XP 1000 S - Radar Blue

Engine & Drivetrain

Horsepower 89 hp

Cylinders Displacement 2 / 952cc

Engine Type ProStar 4-Stroke SOHC Twin Cylinder

Cooling Liquid

Engine Braking System (EBS) Equipped

Fuel System Electronic Fuel Injection

Transmission/Final Drive Automatic PVT P/R/N/L/H In-line Shifting

Drive System Type One Touch On-Demand AWD/2WD

Active Descent Control Not Equipped

Battery 400 cca

Dimensions

Overall Vehicle Size (L x W x H) 209.5 x 140 x 125.7 cm

Ground Clearance 36.8 cm

Wheelbase 145.8 cm

Seat Height 94 cm

Person Capacity 1

Estimated Dry Weight 400 kg

Payload Capacity 132 kg

Front/Rear Rack 11.3 kg / 22.7 kg

Fuel Capacity 19.9 L

Brakes

Front/Rear Brakes Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake

Parking Brake Park In-Transmission / Lockable Hand Lever

Suspension

Front Suspension Sealed High Clearance Arched Dual A-Arm, 29.2 cm Travel

Rear Suspension Sealed Dual A-Arm Rolled IRS, 35.6 cm Travel

Tires & Wheels

Electronic Power Steering Multi Select EPS

Front Tires 27 x 9-12 Duro PowerGrip II

Rear Tires 27 x 9-12 Duro PowerGrip II

Wheels 30.5 cm (12 in) Aluminum

Additional Specifications

Cargo System Lock & Ride, 4 L Rear Storage

Instrumentation All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock

Lighting Dual 65 W High Beams, Dual 50 W Low Beam Headlight

Other Standard Features

Pro Armor Light Bar, Front Bumper, Walker Evans 3-Way Adjustable Shocks, Painted Plastics, Painted Springs, 12 Volt Power Plug, Battery Charger, Pre-Wired for Winch and Hand/Thumb Warmers
