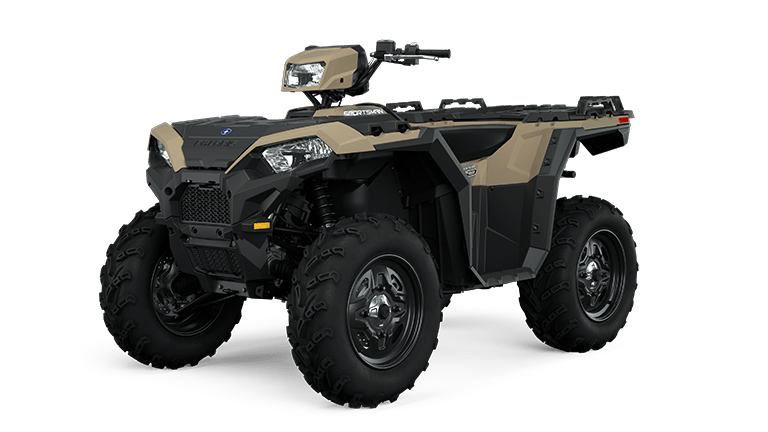

Sportsman 850 - Military Tan

Engine & Drivetrain

Horsepower 78 hp

Cylinders Displacement  2 / 850cc

Engine Type ProStar 4-Stroke SOHC Twin Cylinder

Cooling Liquid

Engine Braking System (EBS) Equipped

Fuel System Electronic Fuel Injection

Transmission/Final Drive Automatic PVT P/R/N/L/H In-line Shifting

Drive System Type One Touch On-Demand AWD/2WD

Active Descent Control Not Equipped

Battery 400 cca

Dimensions

Overall Vehicle Size (L x W x H) 211.4 x 120.9 x 128.9 cm

Ground Clearance 30.5 cm

Wheelbase 134.6 cm

Seat Height 94 cm

Person Capacity 1

Estimated Dry Weight 350 kg

Payload Capacity 261 kg

Hitch Towing Rating 680 kg

Hitch Type Standard 3.2 cm Receiver

Front/Rear Rack 55 kg / 110 kg

Fuel Capacity 19.9 L

Brakes

Front/Rear Brakes Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake

Parking Brake Park In-Transmission / Lockable Hand Lever

Suspension

Front Suspension  Straight Dual A-Arm 22.9 cm Travel

Rear Suspension Straight Dual A-Arm, Rolled IRS, 26 cm Travel

Tires & Wheels

Electronic Power Steering Not Equipped

Front Tires 26 x 8-14 CST

Rear Tires 26 x 10-14 CST

Wheels 35.6 cm (14 in) Steel

Additional Specifications

Ride Command+ Available

Instrumentation  All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet

Lighting  50W High Beam, Dual 50W Low Beam Headlights, Dual LED Brakelights/Taillights

Other Standard Features

4 Moveable Tie-Down Points, In Pod Battery Charge Port
