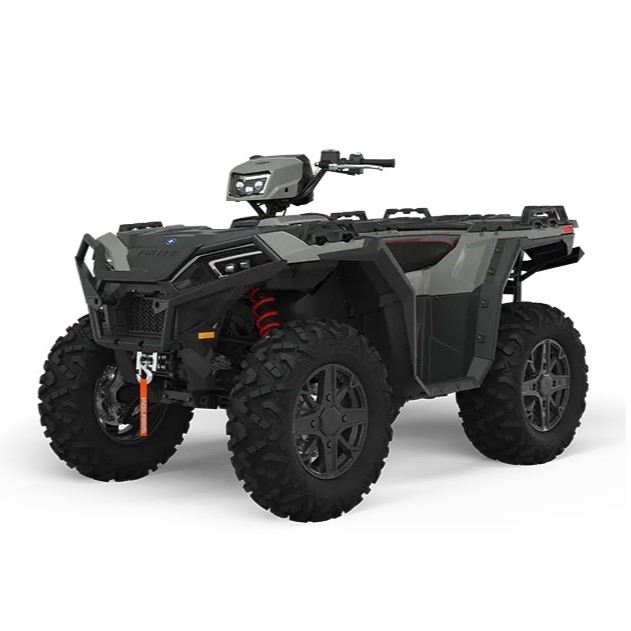

Sportsman 850 Ultimate Trail - Chark Gloss

Engine & Drivetrain

Horsepower 78 hp

Cylinders Displacement  2 / 850cc

Engine Type ProStar 4-Stroke SOHC Twin Cylinder

Cooling Liquid

Engine Braking System (EBS) Equipped

Fuel System Electronic Fuel Injection

Transmission/Final Drive Automatic PVT P/R/N/L/H In-line Shifting

Drive System Type One Touch On-Demand AWD/2WD

Active Descent Control Equipped

Battery 400 cca

Dimensions

Overall Vehicle Size (L x W x H) 211.4 x 120.9 x 128.9 cm

Ground Clearance 30.5 cm

Wheelbase 134.6 cm

Seat Height 94 cm

Person Capacity 1

Estimated Dry Weight 392 kg

Payload Capacity 261 kg

Hitch Towing Rating 680 kg

Hitch Type Standard 3.2 cm Receiver

Front/Rear Rack 55 kg / 110 kg

Fuel Capacity 19.9 L

Brakes

Front/Rear Brakes Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake

Parking Brake Park In-Transmission / Lockable Hand Lever

Suspension

Front Suspension Sealed High Clearance Arched Dual A-Arm, 22.9 cm Travel

Rear Suspension Sealed High Clearance Arched Dual A-Arm, Rolled IRS, 26 cm Travel

Tires & Wheels

Electronic Power Steering Multi Select EPS

Front Tires 27 x 9-14 Duro

Rear Tires 27 x 11-14 Duro

Wheels 35.6 cm (14 in) Aluminum

Additional Specifications

Ride Command+ Available

Instrumentation All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet

Lighting LED POD, LED Bumper Lights, Dual LED Brake Lights/Taillights

Other Standard Features

3,500 lb. Polaris HD Winch with Synthetic Rope, Front Ultimate Series Bumper, Rear Ultimate Series Bumper, Cut and Sew Seat, In Pod Battery Charge Port, Painted Plastics, Painted Springs, Fender Flares, 6 Moveable Tie-Down Points
