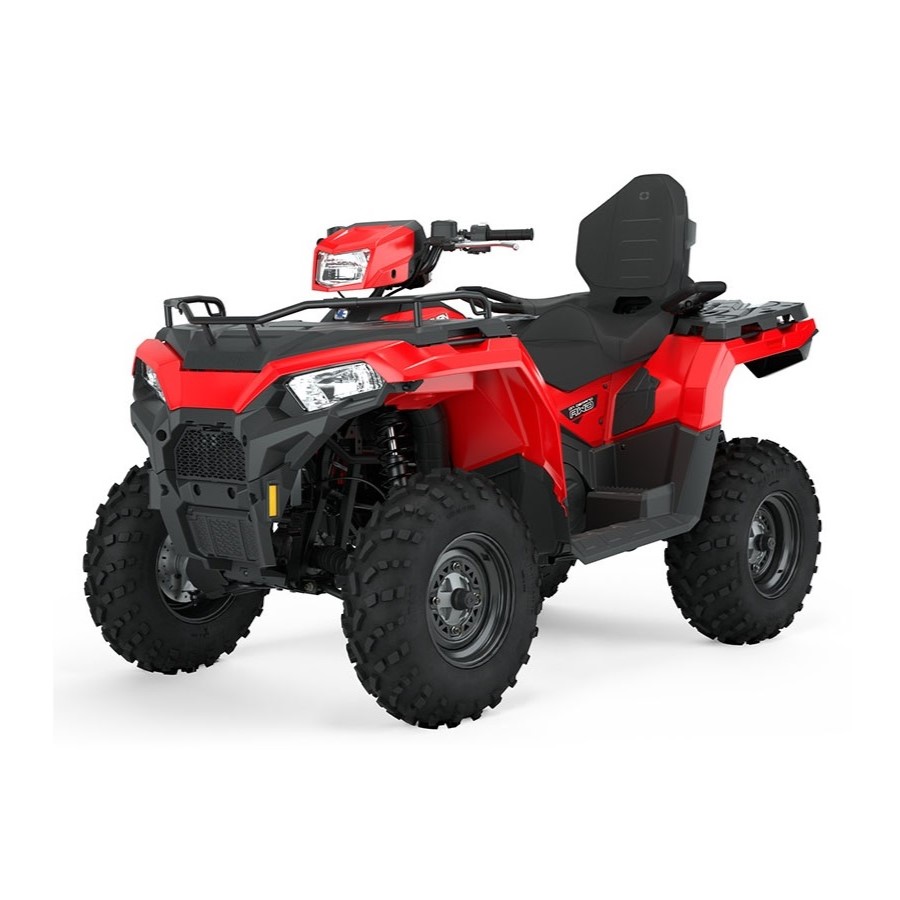

Polaris Sportsman Touring 570 - Indy Red

Work Smarter. Play Harder.

Sportsman 570 delivers task-to-trail versatility with legendary performance, reliability and ride and handling.

Engine & Drivetrain

Horsepower 44 hp

Cylinders Displacement 1 / 567 cc

Engine Type ProStar 4-Stroke DOHC Single Cylinder

Cooling Liquid

Engine Braking System (EBS) Not Equipped

Fuel System Electronic Fuel Injection

Transmission/Final Drive Automatic PVT P/R/N/L/H In-line Shifting

Drive System Type One Touch On-Demand AWD/2WD

Active Descent Control Not Equipped

Battery 340 cca

Dimensions

Overall Vehicle Size (L x W x H) 226 x 121.2 x 150 cm

Ground Clearance 29 cm

Wheelbase 143.2 cm

Seat Height 89.5 cm

Person Capacity 2

Estimated Dry Weight 353 kg

Payload Capacity 220 kg

Front/Rear Rack 40.8 kg / 82 kg

Hitch Towing Rating 612 kg

Hitch Type Standard 3.2 cm Receiver

Fuel Capacity 25.5 L

Brakes

Front/Rear Brakes Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake

Parking Brake Park In-Transmission / Lockable Hand Lever

Suspension

Front Suspension Sealed  MacPherson Strut with 20.8 cm Travel

Rear Suspension Sealed Dual A-Arm IRS, 35.6 cm Travel

Tires & Wheels

Electronic Power Steering Not Equipped

Front Tires 25 x 8-12 P373; 6 PLY

Rear Tires 25 x 10-12 P373; 6 PLY

Wheels 30.5 cm (12 in) Steel

Additional Specifications

Cargo System Lock & Ride Compatible 18.9 L Front Dry Storage, 23 L Rear Storage

Instrumentation All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet

Lighting 50w High Beam, Dual 50w Low Beam Headlights, Dual Brake Lights/Tail Lights

Passenger Seat Toolless Removable Touring Seat

Other Standard Features

Front Rack Extender, Front A-Arm Guards
